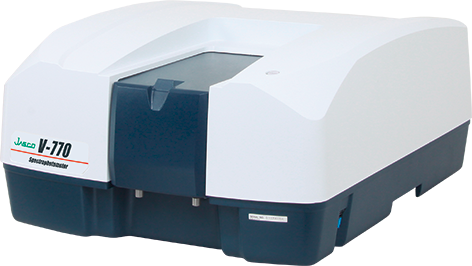

Jasco V-770-CFR UV-Vis/NIR double beam spectrophotometer

V-770-CFR UV-Vis/NIR spectrophotometer

V-770-CFR is the only single-monochromator spectrophotometer available on the market which can measure a whole range from UV to NIR in a single scan. The optical system includes an automatically exchanged dual-grating and dual detector system. The unique single monochromator design of the V-770-CFR utilizes fewer mirrors, providing higher throughput which results in a higher signal-to-noise ratio for the entire spectral range. This feature enables highly accurate measurements using accessories such as an integrating sphere in the NIR region. With the optional wavelength extension kit, the measurement wavelength range can be extended up to 3,200 nm.

Unique features:

• Standard working range of 190 to 2700 nm, expandable up to 3200 nm and variable spectral bandwidth from 0.1 nm
• RMS noise of 0.00003 Abs and Dynamic Range of 5 Abs
• Diffuse reflectance measurement using Integrating Spheres with a light trap
• The ‘L’ Mode and ‘M’ mode spectral bandwidth settings
• True double-beam
• IQ Accessory function
• Validation and Daily Check programs
• More than 70 accessories and over 30 optional programs
• The cross-platform software package Spectra Manager CFR provides features to support laboratories for compliance with 21 CFR Part 11
