KD Scientific Legato 270 syringe pump
Infuse/withdraw continuous flow syringe pump
- Automatic dispensing of small volumes
- Constant delivery of fluids
- Hands free operation
- Better flow performance
Applications
- Microfluidics
- Drug discovery
- Nanofluidics
- Polymer research
- HPLC - Mass Spectrometry
- Organic synthesis
- Electrospinning
- Reactor injections

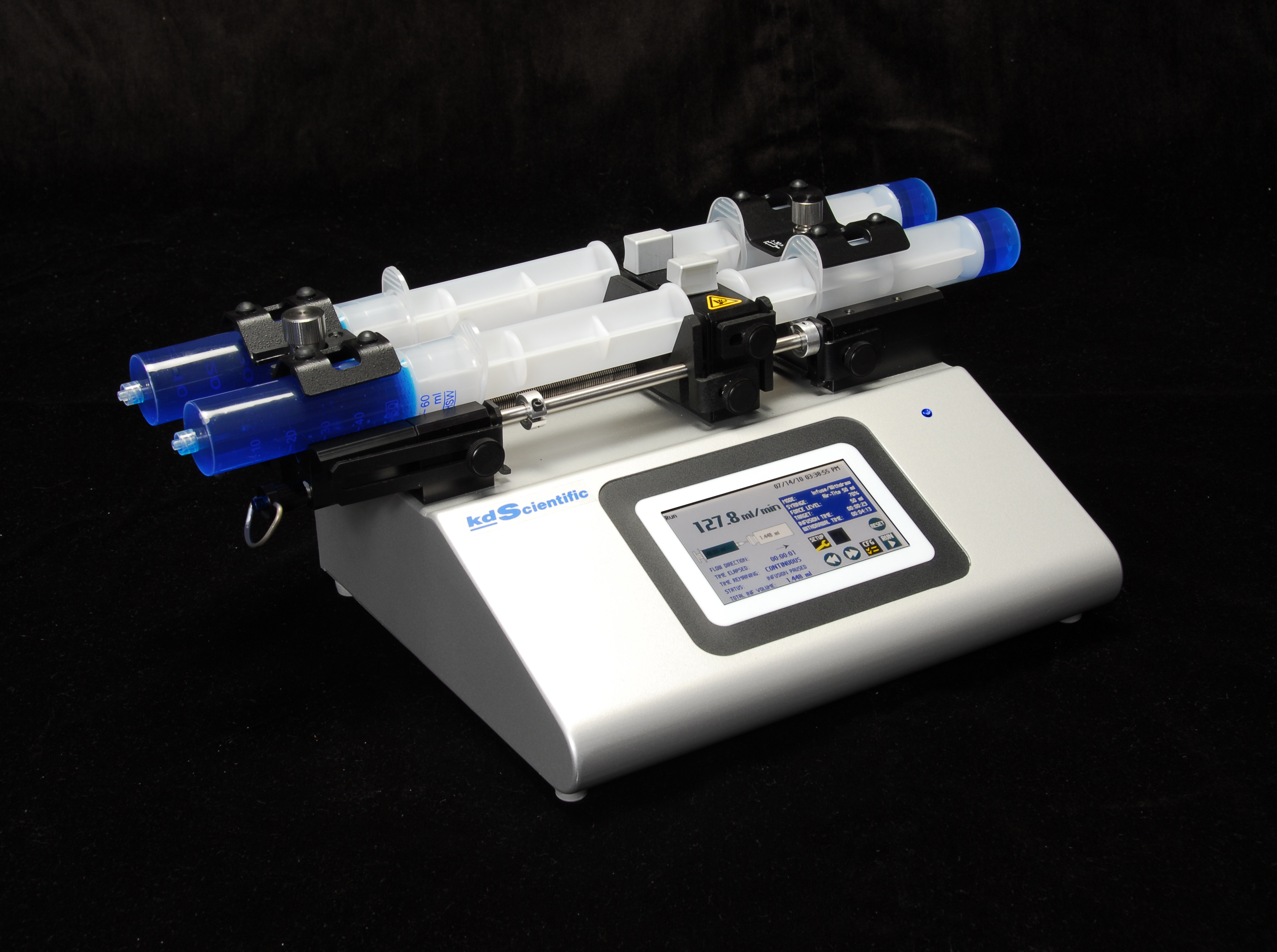

The KD Scientific Legato 270 infuse/withdraw continuous flow syringe pump offers unparalleled ease of use through the high resolution touch screen. The basic model works with two or four syringes. The Legato 270 is the first syringe pump to deliver full stroke syringes. The full touch screen interface enables the user to quickly create configurations and recall them for easy use. The 4.3" TFT color display with touch pad interface presents all the pump operating parameters on one easy to view run screen. Protective cover over the display prevents leakage into the display.
The Legato 270 is a Push-Pull syringe pump. It accommodates 2 syringes from 0.5 μl to 140 ml for infusion and 2 syringes for withdrawal. This model supports infusion and withdrawal simultaneously at user defined flow rates and with selectable target volumes to control the total volume pumped. It also supports infuse only, withdraw only, infuse/withdraw, withdraw/infuse and continuous mode. An LED light on the front panel makes it easy to see if the pump is running. The programmable model offers maximum flexibility for configuring and running different programs. Up to 40 programs of 20 steps each can be configured and stored in the unit and recalled quickly with the touch of a button.
The pumps are versatile and can be connected through the RS485 interface. Advanced microstepping techniques are employed to further reduce the step angle to eliminate flow pulsation. The accuracy is ±0.35% A wide dynamic flow range from 5 pl/min to 215.803 ml/min can be programmed into the pump. Add the Adagio software to maximize the use of the pumps functions and features. Adagio allows you to configure the pump through the software as well as operate one or multiple pumps.
