Efficacy of imaging data analysis using Model Analysis

Imaging measurement using Micro FT-IR is widely used as a method which can visualize the components distribution. In recent years, the users can chose the most appropriate imaging method in accordance with their purpose because a variety of imaging methods has been available due to the progressive development of the high-speed imaging measurement methods using a multi channel detector and IR microscope. The imaging measurement for handling enormous amount of the data, however, requires significant time and special skill for analysis.

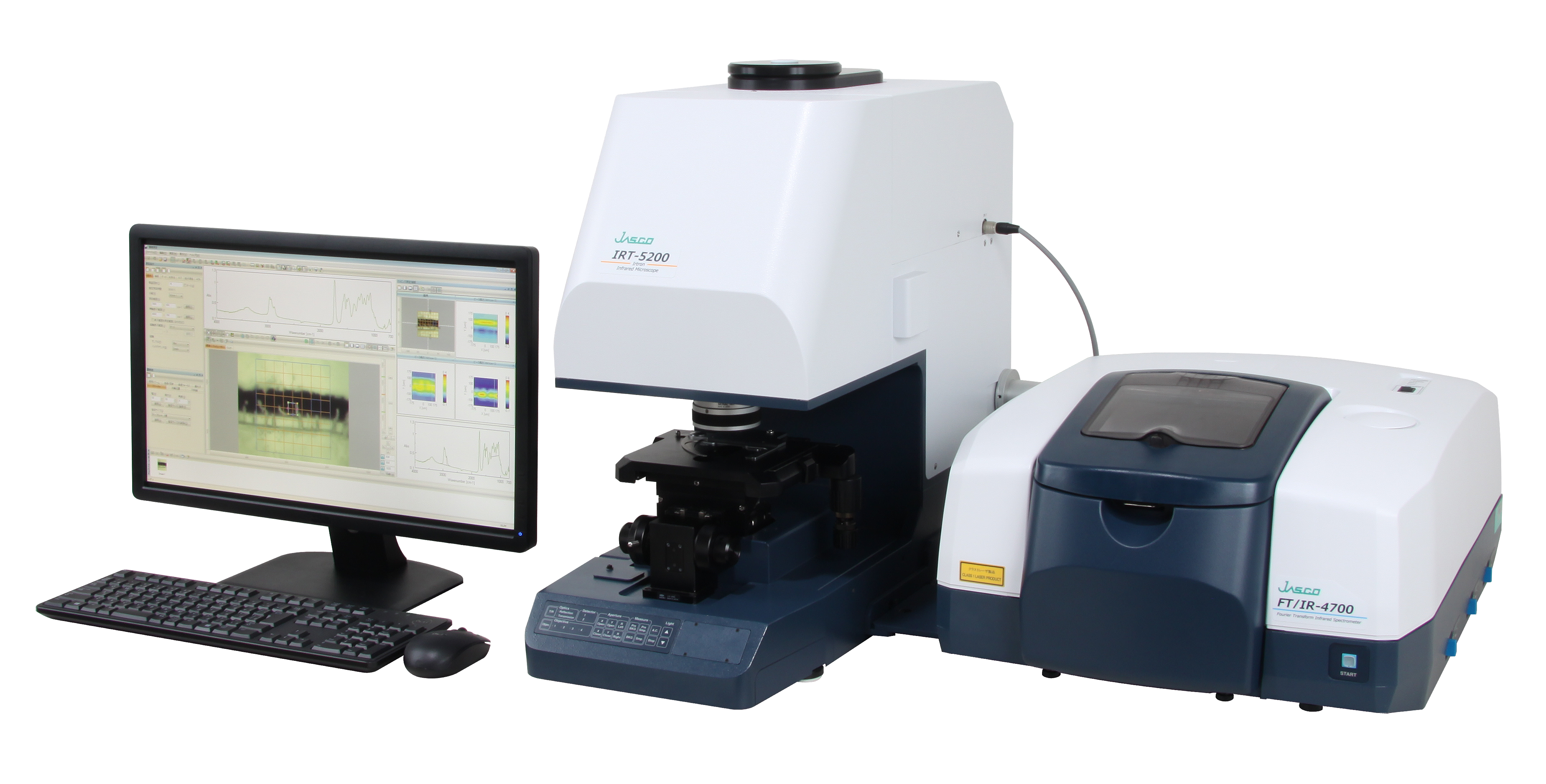

This report illustrates an example of the imaging data analysis using Model Analysis in Micro Imaging Analysis program newly developed for IRT-5200/7100/7200. The Model Analysis is one of the functions to assist the analysis in the Micro Imaging Analysis program such as making an image without checking the spectrum.
