GL Sciences Handheld Gas Flow Meter

Resource type:
Brochure
Author(s):
GL Sciences
Format:
pdf
Date of creation:
9 May 2016
Library code:
10651

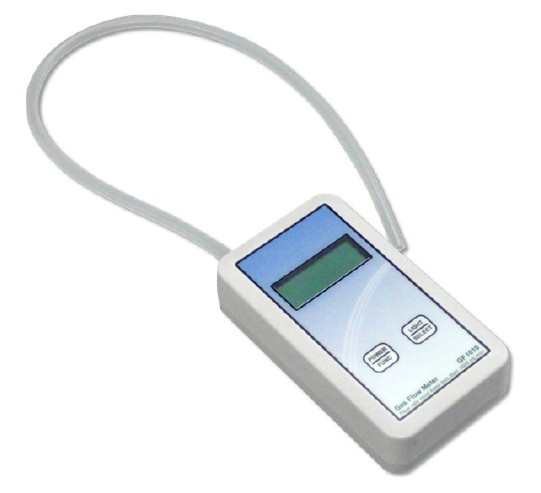

Model GF 1010 Portable Digital Gas Flow Meter for Gas Chromatography

  • Handy and compact
  • Wide flow rate range
  • Easy to operate
  • Helium, Nitrogen, Hydrogen, Air, Argon, etc
  • Auto shutoff

GL Sciences new pocket sized GF 1010 gas flow meter makes gas flow measurement easier and more accurate, helping to eliminate user errors. The GF 1010 is an essential tool for troubleshooting and routine maintenance of your gas chromatograph. The LCD display with back light makes reading flows clear and easy. As an option, there is a silicone cover available to protect the flowmeter.

Specifications

Gases:

Helium, Nitrogen, Hydrogen, Air, Argon, etc (Not explosion-proof structure)

Range:

0.5 - 1200mL/min
No need to select a gas type due to volume flow meter technique.
Mixed gas can also be measured.

Accuracy:

±3% or ±0.3 mL/min whichever is geater (for calibration gas N2)

Temperature Range:

10 - 40°C

Standards:

WEEE, RoHS, CE

Display:

LCD with back light

Silicone tube:

I.D. = 3mm, O.D. = 7mm

Battery:

2 AA Batteries

Dimension:

76(W)x135(D)x35(H)mm

Weight:

approx. 240 gram without battery

Ordering
2709-10100, Gas Flow Meter GF 1010 (includes battery, tube and manual)
Options:
2709-10102, GF 1010 replacement Silicone Tube
2709-10110, Silicone Cover (Navy Blue)
2709-10103, TCD Vent Adaptor (1/8inch Swagelok Adaptor)
2709-55015, Capillary Column Adaptor

PDF icon Download Brochure, GL Sciences GF 1010 Portable Digital Gas Flow Meter.pdf (448.68 KB)
